Volkswagen Polo Service & Repair Manual: Two-Part HS Wet-in-Wet Filler

Volkswagen Polo Service & Repair Manual / General Paint Information / Original Products / Filler / Two-Part HS Wet-in-Wet Filler

Definition:

Two-Part HS Wet-in-Wet Filler -LVM 013 008 A4-, light gray

Two-Part HS Wet-in-Wet Filler -LVM 013 905 A4-, black

Edition 03/2015

Product Description

The two-part HS wet-in-wet filler (light gray) is a high-quality, VOC compliant, two-part HS wet-in-wet acrylic resin-based filler.

Properties:

Excellent processing properties

Long pot life

Flows well

Quick processing and reworking

For economical application in wet-in-wet processes, especially use with water-based paint.

Very good stability under load

Application Instructions

Base Surface

Suitable base surfaces:

sheet steel that has been cleaned, sanded and primed with Two-Part Wash Primer -LHV 043 000 A2- or One-Part Wash Primer -LVM 044 007/171 A2-, galvanized/electrolytically zinced sheet steel or soft aluminum

Fine or non-sanded, thoroughly cleaned, original factory primer.

Thoroughly sanded factory paint or old paint

Surfaces prepared with two-part polyester products and then sanded very fine.

Cleaned and sanded UP-GF surfaces, free of separating agents

Pre-treatment of base surfaces:

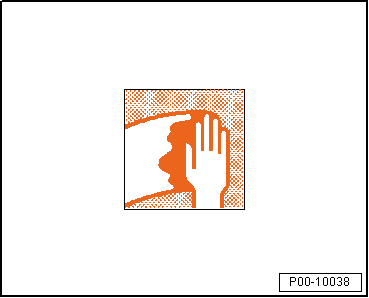

–	Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.

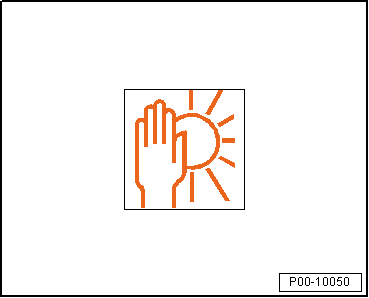

Two-Part HS Wet-in-Wet Filler

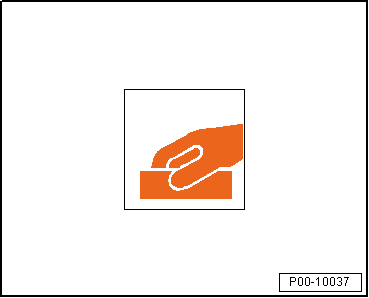

–	Then, sand.

Two-Part HS Wet-in-Wet Filler

–	Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.

Two-Part HS Wet-in-Wet Filler

Wet-in-wet process

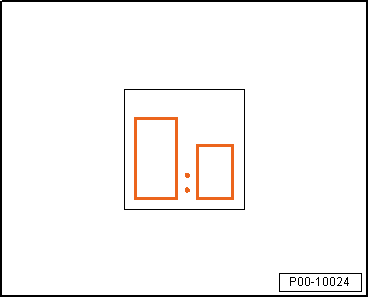

Mixture ratio:

–	5:1 by volume with:

Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-

Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-

Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-

Two-Part HS Wet-in-Wet Filler

Mixture ratio:

–	3:1 by volume with:

Two-Part HS Hardener, Short -LHA 021 004 A3-

Two-Part HS Hardener -LHA 009 041 A3-

Two-Part HS Hardener, Long -LHA 009 047 A3-

Two-Part HS Hardener, Extra Long -LHA 009 048 A3-

For Elastification. Refer to → Anchor.

Two-Part HS Wet-in-Wet Filler

Processing time/pot life:

–	Ready to spray 90 to 120 minutes at +20 °C (68 °F) (depending on the hardener used).

Thinner:

Two-Part Thinner -LVE 009 001 A5-

Two-Part Thinner, Special -LVM 009 200 A2/A5-

Two-Part HS Wet-in-Wet Filler

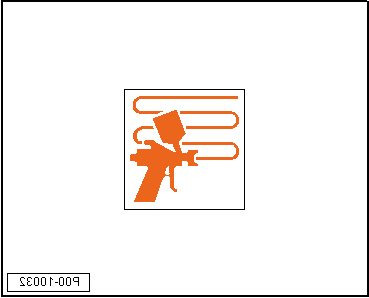

Application type “coat”

Two-Part HS Wet-in-Wet Filler

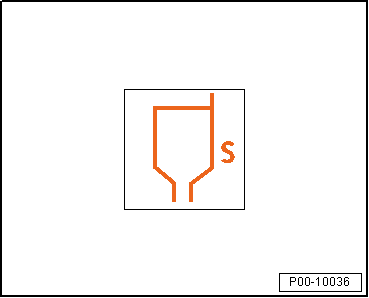

–	Processing viscosity 4 mm for +20 °C (68 °F), German Industry Standardization 53211

Two-Part HS Wet-in-Wet Filler

Processing viscosity 4 mm gravity feed spraygun “Compliant” and “HVLP” is the mixed viscosity.

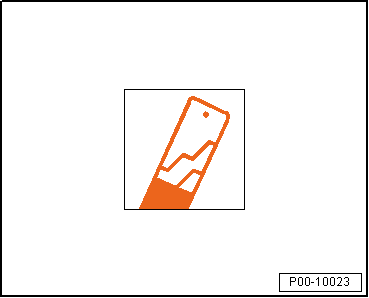

–	Use a measuring stick to mix when pouring in the hardener.

Two-Part HS Wet-in-Wet Filler

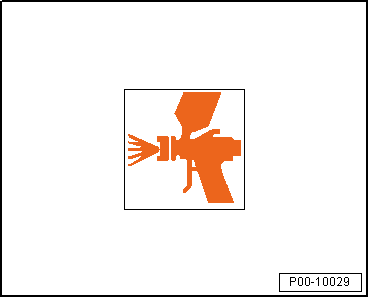

–	Set spray nozzle (see manufacturer's information): “Compliant” 1.3 to 1.4 mm.

–	Set spray nozzle (see manufacturer's information): “HVLP” 1.3 to 1.4 mm.

–	Set spray pressure (see manufacturer's information): “Compliant” to 1.5 to 2.0 bar.

–	Set atomizing pressure (see manufacturer's information): “HVLP” 0.7 bar.

Two-Part HS Wet-in-Wet Filler

–	1 to 2 spray applications are required to get the recommended dry layer thickness of 25 to 30 µm.

Two-Part HS Wet-in-Wet Filler

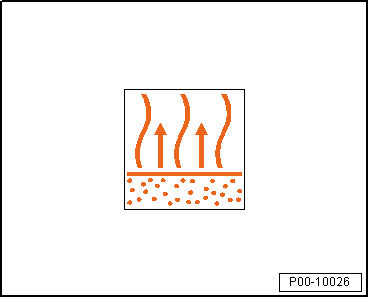

The drying time before continuing work is 15-20 minutes at +20 °C (68 °F)room temperature (maximum 8 hours before applying the top coat).

Two-Part HS Wet-in-Wet Filler

Reworking

Can be painted over with:

Water-based base paint and two-part HS clear coat

Two-Part HS Top Coat

Special Instructions

Elastification for rigid and semi-rigid plastics:

The base material must first be mixed with 15 % Two-Part Elastic Additive -ALZ 011 001-. 3:1 mixture ratio for VHS hardeners with 20% thinner, 2:1 mixture ratio for HS hardeners with 20 % thinner.

Note

The drying time before applying the base paint or two-part top coat increases to 30 to 45 minutes.

Two-Part HS Wet-in-Wet Filler

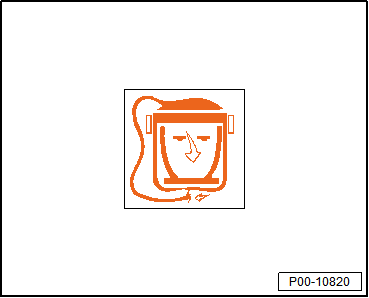

Personal Protective Equipment:

Note the safety data sheets

Wear the personal protective equipment during application

Characteristics

Two-Part HS Wet-in-Wet Filler

Flashpoint:	above +23 °C (73.4 °F)
VOC value: 2004/42/IIB(c)(540)540	The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 540 g/L volatile organic compounds. The VOC value of this product in ready-to-use form is a maximum of 540 g/L.

Storage

The guaranteed shelf life is 24 months from production date. Use no later than the date indicated on the label and store in original container at +20 °C (68 °F).

Two-Part HS Wet-in-Wet Filler

Two-Part Synthetic Adhesion Filler

Definition: Two-Part Synthetic Adhesion Filler -LKF 696 009 A2-, white Two-Part Synthetic Adhesion Filler -LKF 696 040 A ...

Top Coats

...

Other materials:

Refrigerant Still in Circuit
Discharge the refrigerant circuit. – Remove malfunctioning component, flush with compressed air, collect escaping refrigerant oil. – The new component is to be filled with the amount of refrig ...

Run-Flat Tire, Overview of a PAX Tire
PAX tires involve specially developed system that exhibits the following differences in comparison to conventional tires: Pax Tires with Supporting Ring – -I- PAX tires with air ...

Frontal collisions and the laws of physics
Fig. 45 Unbelted occupants in a vehicle heading for a brick wall Fig. 46 Unbelted occupants in a vehicle striking a brick wall First read and observe the introductory information and safety warnings The physical principles involved in a frontal collision are relatively simple. As soon a ...
