Volkswagen Polo Service & Repair Manual: Refrigerant Circuit with Expansion Valve and Evaporator

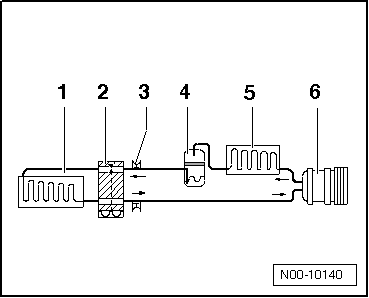

1 -  Evaporator
2 -  Expansion Valve
3 -  Valve for extracting, filling and measuring
4 -  Receiver/dryer with dryer bag/dryer cartridge
5 -  Condenser
6 -  A/C Compressor
  Note
Arrows point in direction of refrigerant flow.


Refrigerant Circuit with Expansion Valve and Evaporator

Refrigerant Circuit Design
...

Refrigerant Circuit with Restrictor and Reservoir
1 -  A/C Compressor 2 -  Condenser 3 -  Restrictor 4 -  ...
