Volkswagen Polo Service & Repair Manual: Contact Release Tools

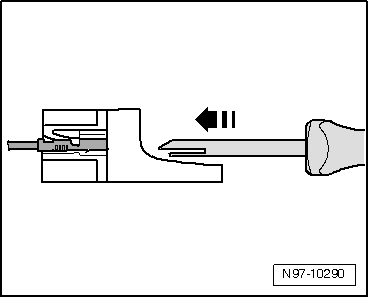

Various release tools are used to remove the different terminals from terminal housings without damage.
A selection of release tools are a component of the Wiring Harness Repair Set -VAS1978- and the Wiring Harness Repair Set -VAS1978A-. The Release Tool Set -VAS1978/35- contains the entire set of release tools. Refer to → Chapter „Release Tool Set -VAS1978/35-“.
  WARNING
Some tools are supplied with a tool safety clip, which is slid over the tool points after using the tool, in order to protect other workers from injuries and tool points from damage.
Contact housings, releasing and disassembling. Refer to → Chapter „Contact Housings, Releasing and Disassembling“.


Contact Release Tools

Crimping Pliers with Insert
The Crimping Pliers without Insert -VAS1978/1- with Crimping Pliers - Insert 2 -VAS1978/2- is a component of the Wiring Harness Repair Set -VAS1978- and is used to cr ...

Single Wire Seal Assembly Tools
Assembly tools serve the purpose of allowing the single wire seals to be slid without damage into terminal housing up to stop, this achieves a complete seal between s ...
