These disc wheels are equipped with replaceable decoration elements. Note the following when installing.

–	Clean the thread in the disc wheel before screwing in the new bolts.

–	Use new bolts only!

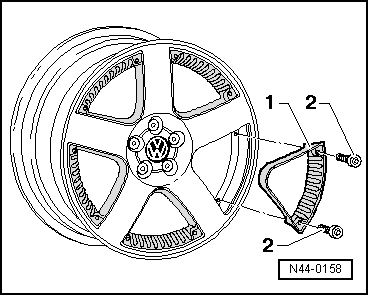

1 -	Decoration element

2 -	Hex socket bolts

Tightening specification for self-locking hex socket bolts: 5 Nm
