Volkswagen Polo Service & Repair Manual: Stone Chip Tester -VAS5102A

Definition:
Stone Chip Tester -VAS5102A-
Product Description
The Stone Chip Tester -VAS5102A- is a proprietary tool of Volkswagen AG. It can identify whether chipped paint is the result of a material flaw/workmanship fault or whether it is the result of excess mechanical stress such as stone impacts or scratches. The test is based upon a simulation of the average amount of stress caused by objects (high-speed, low-mass sand/gravel) during a traffic collision.
  Note
The test procedure is described at length in the catalog "Analyzing Vehicle Paintwork".
The instrument is subject to a yearly maintenance check by the manufacturer at the owner's expense.

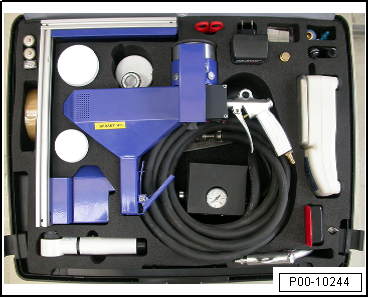

Delivery contents
1 stone impact tester and battery-powered metering device, pressure regulator and hose
1 power supply
Calibration frame and check weigher
Illuminated magnifier
Foil with angle markings
Adhesive tape 25 mm wide
Filler-paste and scissors
Granulate filling chute 10 x 100g granulate
Hard shell case with rollers
100 test seals each of VW and Audi
Instruction manual, rating scale, test certificate, test plan
