Removing
–  Unplug connector for fiber optic cable from appropriate control unit.

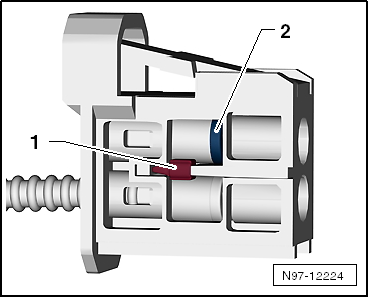

–  Release the locking mechanism in the fiber-optic cable connector -1- by pushing on it.
–  Release the secondary lock -2- with a small screwdriver.
–  Remove the fiber-optic cable.
  Caution
Install the cap on the trunk, in order to protect the fiber-optic cable from dust and dirt.
Use a new housing since it is likely that the secondary lock was damaged during the removal of the fiber-optic cable.
Note the arrows for allocation on the base module “IN” and “OUT”.
Installing
Install in reverse order of removal. Note the following
–  Install the fiber-optic cable according to the markings.
  Note
Push the corrugated tube into the connector housing until it audibly engages.


Fiber-Optic Cable, Disconnecting from Wiring Harness Connector

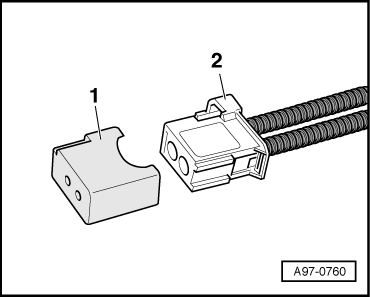

Cover the open connector -2- for the fiber-optic cable using the Fiber-Optic Repair Set - Connector Protective Caps -VAS6223/9--item 1-.
The protective cap prevents contamination of or mechanical damage to end face of fiber optic cable which would impair signal transmission.
