Volkswagen Polo Service & Repair Manual: Run-Flat Tire, General Information

Run-flat tires have a reinforced sidewall in comparison to standard tires. This reduces the tendency for the sidewall to roll when there is a loss of pressure and prevents the sides of the tire from being pinched. This allows the vehicle to be driven while still maintaining close to normal driving behavior. It also eliminates the need to install the spare tire in dangerous situations such as on the highway or in poor weather conditions.
When there is a flat tire, the vehicle can still be driven to the nearest workshop (within approximately 50 km) as long as the vehicle speed (maximum 80 km/h (49.7 mph)) and driving style are adapted accordingly, see the Owner's Manual.
If there is a flat tire, the driver is ultimately responsible for checking the affected tire and deciding if it is possible to continue driving.

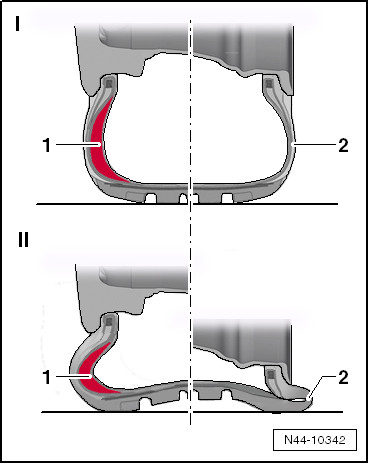

-I- Tires with Normal Pressure
1 -  Run-flat tires (reinforced sidewall -red-)
2 -  Standard tires
-II- Tires without Air Pressure
If the standard tire -2- loses pressure, the rim pushes the side wall together. When the tire is the flat, the sidewall becomes extremely hot from the rolling motion and or is pinched. This destroys the tire.
In run-flat tires -1-, the reinforced sidewall (-red-) supports the tire. Because of a special rubber compound and the reduced flexing of the reinforced sidewall, the tires does not become as hot and the vehicle can still be steered.
  Note
Read and follow the special requirements for using run-flat tires. Refer to → Chapter „Run-Flat Tire, Retrofitting/Conditions for use of Run-Flat Tires“.


Run-Flat Tire, General Information

Tires with Emergency Running Characteristics, SST (Self-Supporting Tire)
...

Run-Flat Tire, Retrofitting/Conditions for use of Run-Flat Tires
  Caution Using run-flat tires on vehicles is permitted only if the run-flat tire is supplied with the vehicle either ...
