| Paint Thickness Tester -VAS6272- |

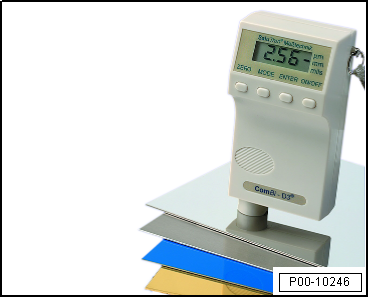

| The paint layer thickness measuring instrument -VAS6272
Paint Thickness Tester- is a combination measuring instrument
used for interference-free measuring of paint coats on steel,
iron and non-metallic surfaces. The menu navigation and
easy-to-use parameter adjustments ensure a quality outcome and
make this the perfect instrument for the workshop. This
ergonomically-designed instrument has integrated measuring
probes and is easy to operate, allowing for pinpoint accurate
measurements. |
| Measuring range: progressive 0-3500 µm |
|
|
|
