Definition:

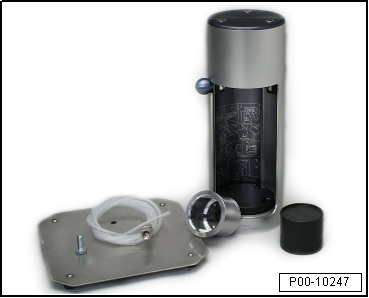

Spray Can Filling Device -VAS6425-

Product Description

The spray can filling device is a pneumatic, maintenance-free dispensing device for filling spray cans with mixed base paint and top coats. The device is suited for filling One-Part Fill-Clean Spray Cans -LLS MAX 100-, which can be ordered via the Parts Catalog.

Size

Diameter: 132 mm

Height: 366 mm

Door height: 123 mm

Filling cylinder: diameter 135 mm, height 65 mm, maximum filling volume 100 ml

Attachment plate dimensions: 250 x 250 x 2 mm

Technical Data

Pneumatic filling principle

Filling pressure: 8-10 bar/100-130 psi

Rupture point: approximately 60 bar/ca. 870 psi

Operating temperature: +5 °C to +50 °C (41° to 122 °F)

Gross weight: 4.23 kg

Net weight: 4.00 kg

Delivery Contents:

Spray can filling device and metal cylinder

Compressed air hose and attachment coupling

Fastening screw and washer

Base plate

Adapter for 250 mL cans

Spray Can Filling Device -VAS6425
