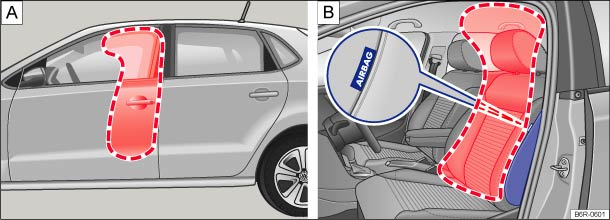

Fig. 60 On left-hand side of vehicle: deployment zone of the combined curtain and side airbags (variant A). On the side of the front seat: location and deployment zone of the combined curtain and side airbag (variant B)
First read and observe the introductory information and safety warningsThe combined curtain and side airbags are located in the outer seat backrest cushions B of the driver seat and front passenger seat. The locations of the airbags are marked with stickers with the word AIRBAG. The area marked red defines the deployment range of the combined curtain and side airbag.
During a side collision, the combined curtain and side airbags will be deployed on the vehicle's side of impact, reducing the risk of injury to the areas of the vehicle occupants' bodies facing the impact.
WARNING
Once triggered, the airbag inflates at high speed.WARNING
Incorrect use of the driver and front passenger seat could hinder the proper function of the combined curtain and side airbags and cause serious injury.Variable luggage compartment floor
Fig. 86 A: variable luggage compartment
floor folded up and secured; B: expanding luggage compartment to front
Fig. 87 C: extending the luggage compartment
down; D: setting the maximum luggage space
First read and observe the introductory information
and safety warnings
The luggage compar ...
