Volkswagen Polo Service & Repair Manual: Wheel Mounting, Position of Anti-Theft Wheel Bolts on Steel Wheels

Volkswagen Polo Service & Repair Manual / Whels, Tires, Whel Alignment / Wheel, Mounting / Wheel Mounting, Position of Anti-Theft Wheel Bolts on Steel Wheels

Caution

It is absolutely necessary to maintain the position of the anti-theft wheels bolts to the tire valve on steel wheels.

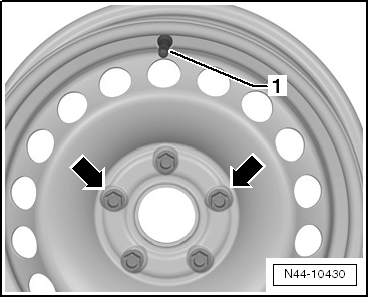

The anti-theft wheel bolt must be installed either to the right or to the left -arrows- of the valve -1- on steel wheels.

The decorative wheel hubcap can be installed on the steel wheel securely only when the anti-theft wheel bolt is installed in this position.

Wheel Mounting, Position of Anti-Theft Wheel Bolts on Steel Wheels

Wheel, Mounting, Audi Assembly Instructions

Vehicles with Tire Pressure Monitoring Sensor. If wheels are changed (for example, change from summer to winter tires), wheel electronics send data a ...
