Volkswagen Polo Owners Manual: Variable luggage compartment floor

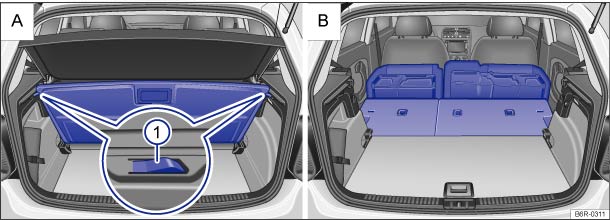

Fig. 86 A: variable luggage compartment floor folded up and secured; B: expanding luggage compartment to front

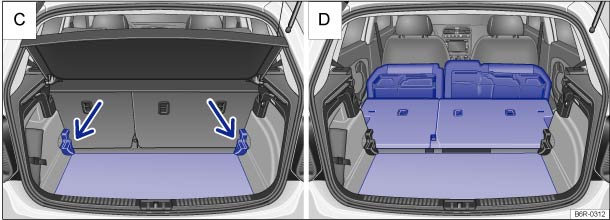

Fig. 87 C: extending the luggage compartment down; D: setting the maximum luggage space
First read and observe the introductory information
and safety warnings
The luggage compartment can be extended in many ways as a result of the variable luggage compartment floor .
Small items can be stowed in the stowage compartment underneath the variable luggage compartment floor.
Example A: Opening stowage compartment
Use the recessed handle to fold the variable luggage compartment floor up and push it over the retaining brackets to secure it in place.
Example B: Extending the luggage compartment to the front
- Remove the luggage compartment cover .
- Push the rear head restraints all the way down .
- Fold the seat cushion and backrest forwards .
Example C: Expanding the luggage compartment down
- Lift back the luggage compartment floor and push it under the guides (arrows).
- Place the luggage compartment floor on the floor covering.
Example D: setting the maximum luggage space
- Extending the luggage compartment to the front .
- Extending the luggage compartment downwards .
NOTICE
Luggage compartment cover
Fig. 84 Open tailgate: raised luggage
compartment cover
Fig. 85 Behind the rear backrest: stowed
luggage compartment cover
First read and observe the introductory information
and safety warn ...
Fastening rings
Fig. 88 In the luggage compartment: fastening
rings
First read and observe the introductory information
and safety warnings
You will find fastening rings at the front and rear of the luggage co ...
