Volkswagen Polo Service & Repair Manual: Special Connector Systems
 Note
| If necessary, housing securing mechanisms (secondary locks)
must be released or removed using specified tool before
releasing the contacts. Refer to
→ Chapter „Secondary Lock“. |
|
|
|
| – |

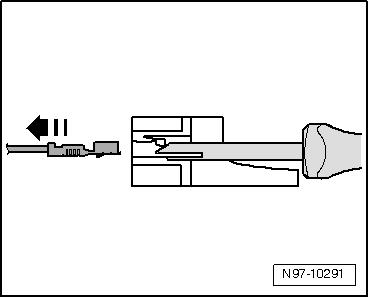

Guide the release tool which fits the contact housing into
release channel on contact housing. |
| – |
Grasp contact at wire and push it gently into contact
housing. |
Note
| By pushing the contact in the direction of the contact
housing, the contact retaining tabs are lifted off the housing
shoulder and can be released using the release tool. |
|
|
|
| – |
At the same time, push release tool in direction of contact
housing and pull the released contact out of contact housing
-arrow-. |
| – |
After removing the contact, release tool can be pulled out
of the contact housing again. |
|
|
|
| – |

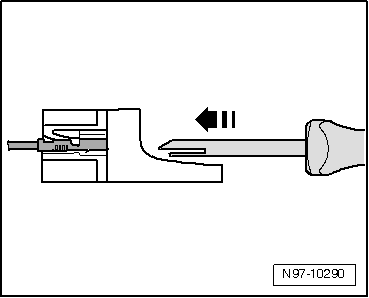

Guide the release tool which fits the contact housing under
retaining tab into contact housing. |
| – |

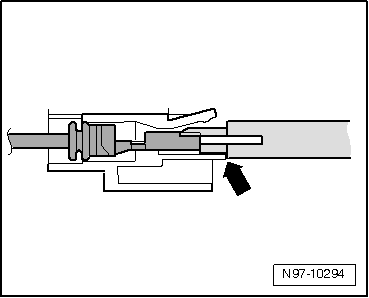

Push tool into contact housing until it stops
-arrow-. |
|
|
|
| Contact is ejected from the contact housing. |
| – |
After ejecting the contact, release tool can be pulled out
of contact housing again. |
|
|
|
| Contacts without Retaining Tabs |
| – |

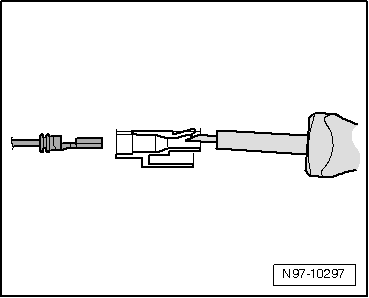

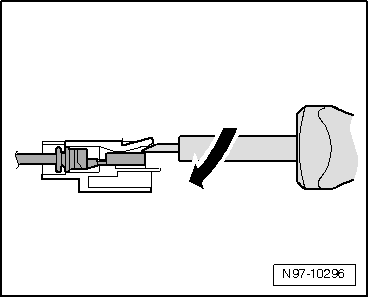

Insert release tool under retaining tab of terminal housing. |
| – |
Push release tool through until it stops by gently lifting
-arrow-. |
|
|
|

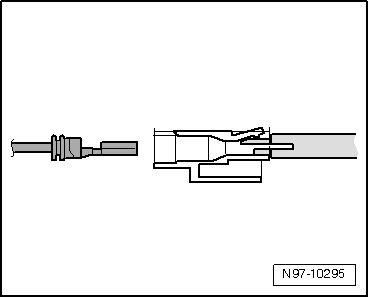

| Contact is ejected from the contact housing |
|
|
|
Note
If necessary, housing securing mechanisms (secondary locks)
must be released or removed using specified tool before
releasing the contacts. Refer ...
