Volkswagen Polo Service & Repair Manual: Hub Cap for Alloy Wheels with Open Threaded Connection, Removing and
Installing
 Note
|
|
|

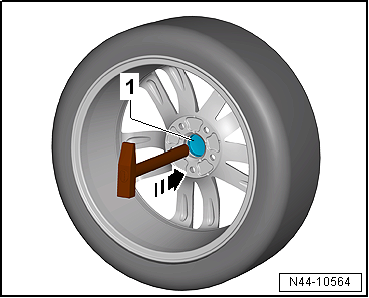

| Hold the cap secure -1- with
the hammer. |
|
|
|
| – |
Hold the cap -1- flush against
the opening in the aluminum rim. |
| – |

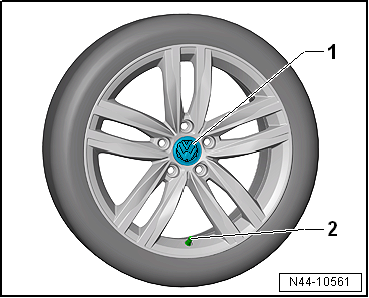

Line up the Volkswagen logo on the cap with the valve so
that the logo is centered over the valve
-2-. |
| – |
Press on the cap so that it is secure inside the opening in
the aluminum rim. |
| – |
Make sure the cap it secure inside the aluminum rim. |
|
|
|
WARNING
Do not repair damaged rims by heating, welding or
adding or removing material.
...
