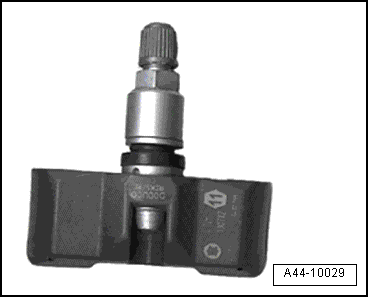

Overview, Beru System

WARNING

If tire sealant was used, then the wheel electronics on that particular wheel must be replaced.

WARNING

Damaged wheel electronics must be replaced.

Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

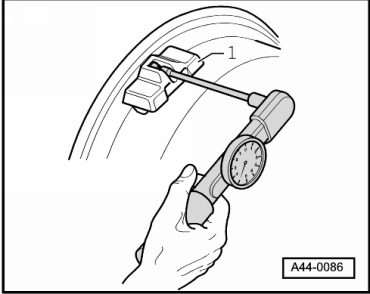

–	Push the wheel electronics -1- into the bed.

–	Install on the valve from the back with a microencapsulated screw -item 8- → Item

Note

Replace the microencapsulated screw.

Tighten the microencapsulated screw to 4 Nm on all models.

Special tools and workshop equipment required

Torque Wrench 1410 -VAG1410- and Torque Wrench 1410 Insert - Accessory Kit -VAG1410/1-

Tightening Specifications. Refer to → Anchor.
