Volkswagen Polo Service & Repair Manual: A/C Refrigerant High Pressure Switch -F23

Volkswagen Polo Service & Repair Manual / Refrrigerant R134a Servicing / Refrigerant Circuit General Information / Switches and Sensors on Refrigerant Circuit and Connections / A/C Refrigerant High Pressure Switch -F23

Note

For switching pressures, removing and installing switches and switch arrangement and version, see vehicle-specific refrigerant circuit.

Refer to → Rep. Gr.87.

Function:

Switches the coolant fan to the next higher level when the pressure in the refrigerant circuit increases (approximately 16 bar (232 psi)).

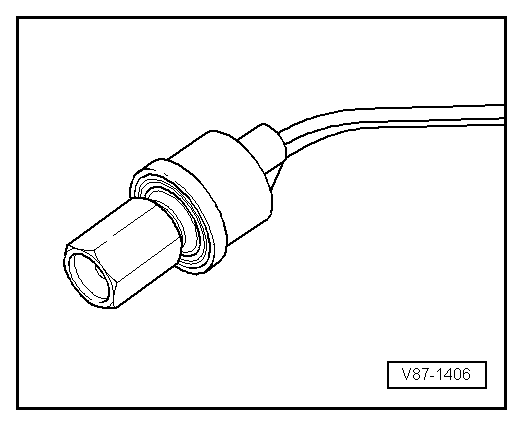

A/C Refrigerant High Pressure Switch -F23
