Volkswagen Polo Service & Repair Manual: Wheel Bolt Versions

Shank Designs

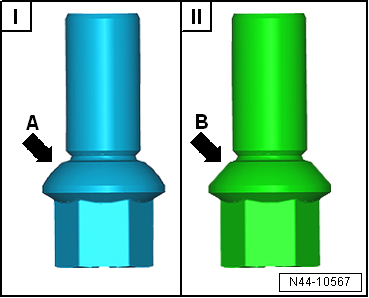

There are two shank designs: rounded and conical.

The rounded shank has a curved surface -arrow A-. This design was used for original rims.
The conical shank has a flat surface -arrow B-. This design is used partially on rims from the accessories program.
I -  Wheel bolt with rounded shank
II -  Wheel bolt with conical shank
  Note
Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.
Only the same wheel bolts may be installed on all four wheel rims for every vehicle.


Wheel Bolt Versions

Standard, One-Piece Wheel Bolt.


Wheel Bolt Versions

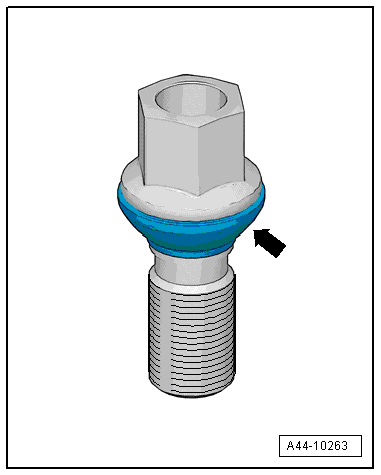

Two-Piece Wheel Bolts with Short Rotatable Spherical Cap


Wheel Bolt Versions

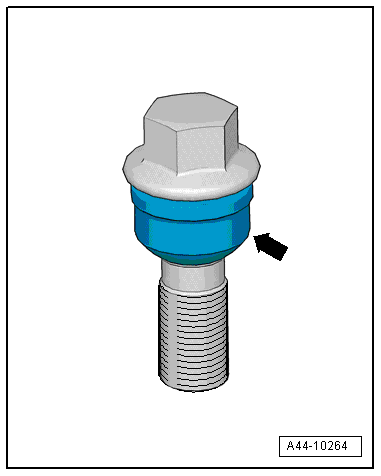

Two-Piece Wheel Bolts With Long Rotatable Spherical Cap


Wheel Bolt Versions

Wheel Bolts
...

Wheel Bolts, Anti-Theft Wheel Bolt
Anti-Theft Wheel Bolts 1 -  Anti-theft wheel bolts 2 -  Cap 3 -  ...
