Volkswagen Polo Service & Repair Manual: Two-Part MS Matte Clear Coat
| Two-Part MS Matt Clear Coat -L2K 769 020 A2- |
| Two-part MS matt clear coat is a clear coat from the
two-part acrylic system. |
| Can be cured with HS and VHS products |
| Gloss grade adjustments with two-part HS clear coats are
possible. |
| Ideally suited for painting plastic |
 Note
| The use of Two-Part MS Matt Clear Coat -L2K 769 020 A2-
should be limited to small surfaces (passenger vehicle
attachments). |
| Suitable preliminary coatings: |
|
|
|
| Two-Part HS Hardener -LHA 009 041 A3- |
| Two-Part HS Hardener, Long -LHA 009 047 A3- |
| Two-Part HS Hardener, Extra Long -LHA 009 048 A3- |
|
|
|
| Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5- |
| Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052
A3- |
| Two-Part VHS Hardener, Extra Long -LHA 009 053 A2- |
Note
| Using varying HS/VHS hardeners and thinners results in
different gloss grades. |
|
|
|

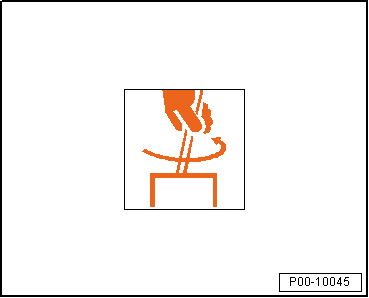

| The clear coat should be carefully agitated before removing
the material. |
| Two-Part Thinner -LVE 009 001 A5- |
| Two-Part Thinner, Long -LVM 009 300 A2- |
| Two-Part Thinner, Special -LVM 009 200 A2-/-LVM 009 200 A5- |
|
|
|
| Processing time/pot life: |
| – |
Ready to spray in 4 hours at +20 °C (68 °F). |
|
|
|
| – |
Processing viscosity at +20 °C (68 °F) material temperature
is the mixing viscosity for “Compliant” and “HVLP”. |
| Processing viscosity 4 mm gravity feed spraygun “Compliant”
and “HVLP”: |
| DIN 4 mm: 14 to 16 seconds |
| ISO 4 mm: 28 to 33 seconds. |
|
|
|
| Add 25 % HS hardener (3:1) and 30 % VHS hardener (5:1) at
+20 °C (68 °F) material temperature |
| – |
Use a measuring stick to mix when pouring in the thinner. |
|
|
|
| – |
Set spray nozzle (see manufacturer's information):
“Compliant” and “HVLP” to 1.3 to 1.4 mm. |
| – |
Set spray pressure (see manufacturer's information):
“Compliant” to 2.0 to 2.5 bar. |
| – |
Set atomizing pressure (see manufacturer's information):
“HVLP” 0.7 bar. |
|
|
|
| – |
Apply one complete preliminary spray application, allow to
ventilate for 15 to 20 minutes and then finish painting. |
| – |
The prescribed layer thickness is 50 to 60 µm. |
Note
| Using varying application types results in different gloss
grades. |
|
|
|
| Air dry at +20 °C (68 °F) room temperature: |
| Dust dry after 2 to 2.5 hours |
| Ready for assembly after 5 to 6 hours |
|
|
|
| Final drying time with forced drying is a minimum of 15 to
20 minutes |
|
|
|
| Forced dry at +60 °C (68 °F) object temperature for 40 to 45
minutes |
|
|
|
| Personal Protective Equipment: |
| Note the safety data sheets |
| Wear the personal protective equipment during application |
|
|
|
| Flashpoint: |
above +23 °C (68 °F) |
| VOC value: 2004/42/IIB(e)(840)580 |
The EU limit for this product
(product category IIB.b) in ready-to-use form is a maximum of 840 g/L
volatile organic compounds. The VOC value of this product in
ready-to-use form is a maximum of 580 g/L. |
| The guaranteed shelf life of Two-Part MS Matt Clear Coat
-L2K 769 020 A2- is 24 months from date of manufacture. Use no
later than the date indicated on the label and store in original
container at +20 °C (68 °F). |
|
|
|
Definition:
Two-Part HS Clear Coat -L2K 769 500 A5-
Edition 10/2012
Product Description
...
Definition:
Two-Part HS Vario Clear Coat -L2K 769 K01 A5-
Edition 06/2013
Product Description
...
Other materials:
Special Tools
Special tools and workshop equipment
required
Torque Wrench 1331 5-50Nm -VAG1331-
Crimping Pliers, Complete -VAS1978/1A-
...
Contaminants Removed from Refrigerant Circuit
The reservoir/receiver/dryer or dryer bag/cartridge should
not be replaced under the following conditions.
After an accident when there is no damage on the
reservoir/receiver/dryer.
The repair was done quickl ...
Blender
Definition:
Blender -LVE 013 100 A2-
Edition 10/2012
Product Description
Blender was developed for hassle-free two-part clear coat
and top coat touch-up.
...
© 2016-2025 Copyright www.vwpolo.net
Two-Part HS Clear Coat
Two-Part HS Vario Clear Coat
