Volkswagen Polo Service & Repair Manual: Stone Chip Protection -AKR 311 KD1 10
Stone Chip Protection -AKR 311 KD1 10-, black |
Stone Chip Protection -AKR 311 KD1 10- (black) is a
water-soluble stone chip protection. |
Can be painted over with all top coats |
Particularly suitable for parts of passenger and work
vehicles which are subject to gravel impact, such as front
sections and door sill panels. |
Well sanded factory paint or old paint (including
thermoplastic coatings) |
Surfaces treated with primer or filler |
Caution
The Stone Chip Protection -AKR 311 KD1 10- may not
be applied to PVB (acid-hardening) adhesive primers. |
|
|
|
|
Pre-treatment of base surfaces: |
– |
Carefully clean using Silicone Remover -LVM 020 000 A5- or
Silicone Remover, Long -LVM 020 100 A5-. |
|
|
|
– |
Use a suitable cleaning agent before reworking to ensure a
clean and residue-free surface. |
|
|
|
– |

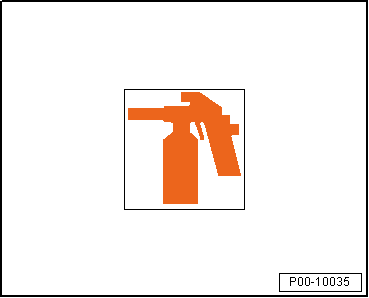

Underbody spray gun with thread for disposable cans. |
|
|
|
– |
If a finer surface is desired, the Stone Chip Protection -AKR
311 KD1 10- can be applied with a pressure feed spray gun
according to the appropriate thinning. |
– |
Thinnable with Purified Water -LVW 010 000 A5- |
|
|
|
“High-Pressure Spraying” application type |
|
|
|
– |
Processing viscosity 4 mm for +20 °C (68 °F), German
Industry Standardization 53211 |
– |
Set spray nozzle (see manufacturer's information) to 3 to 4
bar. |
Note
Do not dilute during the high-pressure spraying procedure.
The delivery viscosity is the same as the application viscosity. |
|
|
|
Application viscosity 4 mm gravity feed spray gun
“Compliant”: |
Depending on the addition of Purified Water -LVW 010 000 A5- |
|
|
|
Adding 10 % thinner at +20 °C (68 °F) material temperature. |
– |
Use a measuring stick to mix when pouring in the thinner. |
|
|
|
– |
Set spray nozzle (see manufacturer's information):
“Compliant” 1.5 to 2.0 mm. |
– |
Set spray pressure (see manufacturer's information):
“Compliant” to 2.0 to 2.5 bar. |
|
|
|
– |
Apply two to three spray applications. |
– |
The recommended dry layer thickness is between 150 and 300
µm. |
|
|
|
Air dry at +20 °C (68 °F) room temperature for 2 to 2.5
hours to 150 µm and overnight to 300 µm |
|
|
|
Final drying time with forced drying is a minimum of 35 to
40 minutes. |
|
|
|
Forced drying at +60 °C (140 °F) object temperature for 30
minutes to 150 and 300 µm |
|
|
|
Can be painted over with: |
Water-based base paint and two-part HS clear coat |
|
|
|
Personal Protective Equipment: |
Note the safety data sheets |
Wear the personal protective equipment during application |
|
|
|
Delivery Viscosity |
Thixotropic |
Flashpoint: |
flame-resistant |
VOC value: 2004/42/IIB(e)(840)130 |
The EU limit for this product
(product category IIB.e) in ready-to-use form is a maximum of 840 g/L
volatile organic compounds. The VOC-value of this product in
ready-to-use form is a maximum of 130 g/L. |
The guaranteed shelf life of 48 months from date of
manufacture. Use no later than the date indicated on the label
and store in original container at +20 °C (68 °F). |
|
|
|
The prescribed storage temperature is +20 °C (68 °F) (not to
fall below +5 °C (41 °F)). |
|
|
|
Definition:
Stone Chip Protection -AKR 311 KD1 05-, black
Edition 04/2009
Product Description
...
Other materials:
AGM Battery, Checking
Perform Battery Checks in the Following Sequence:
1.
Visual inspection. Refer to
→ Chapter „Visual Inspection“.
2.
Check the battery using the Battery Tester -VAS6161-. Refer
to
...
Electrically Driven A/C Compressor, Flushing
Vehicles with a high voltage system
Observe all of the additional warnings for all work
performed on vehicles with the high voltage system. Refer to
→ Electrical Equipment; Rep. Gr.93.
...
Two-Part HS Wet-in-Wet Filler
Definition:
Two-Part HS Wet-in-Wet Filler -LVM 013 008 A4-, light gray
Two-Part HS Wet-in-Wet Filler -LVM 013 905 A4-, black
Edition 03/2015
Product Description
...
© 2016-2024 Copyright www.vwpolo.net
