Volkswagen Polo Service & Repair Manual: Special Tools
| Special tools and workshop equipment
required |
|
|
|

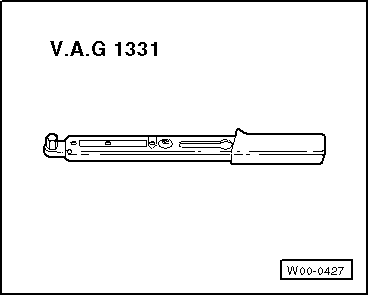

| Torque Wrench 1331 5-50Nm -VAG1331- |

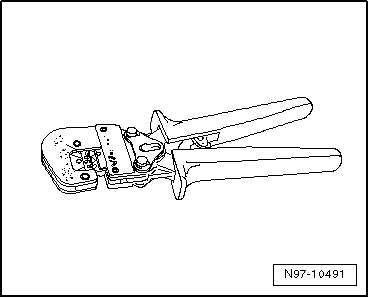

| Crimping Pliers, Complete -VAS1978/1A- |
|
|
|
| Exchangeable Head, 0.35mm² - 2.5mm² -VAS1978/1-1- |
| Diagnostic Cable -VAS5051/5A- (3 m) (10 ft.) |
|
|
|

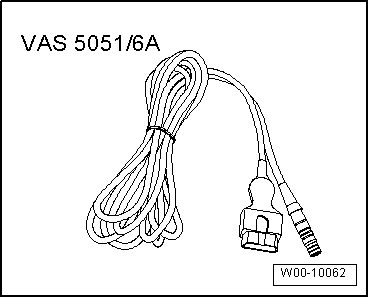

| Diagnostic Cable -VAS5051/6A- (5 m) (16 ft.) |
|
|
|

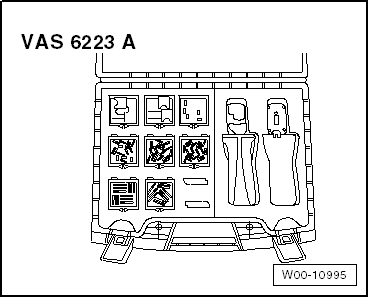

| Fiber Optic Pliers Repair Set -VAS6223A- |
|
|
|

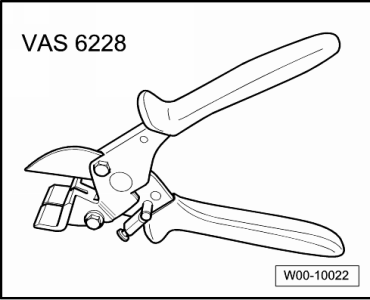

| Air Hose Pliers -VAS6228- |
| Repair Set, Aerial Cable -VAS6720- |
| Edition: K0059101321 - FU - 5/8/2014 – JLH |
|
|
|
Note
In addition to using the part number, the protective pipe
can also be used for identification.
Version D1, 6 openings, 3.5 mm eac ...
