Volkswagen Polo Service & Repair Manual: Release Tool Set -VAS1978/35

Volkswagen Polo Service & Repair Manual / Wiring / Wiring Harness and Connector Repairs / Wiring Harness Repair Set / Release Tool Set -VAS1978/35

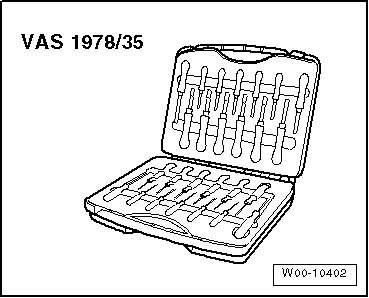

The Release Tool Set -VAS1978/35- is used to release the various primary and secondary locking mechanisms on VW-group vehicles. The set consists of 26 different tools which can be used to professionally release or assemble e.g. round connector systems, flat terminals with one or two locks as well as single wire seals.

The allocation of the correct release tools to the respective locking mechanisms can be found in the table in the Release Tool Set -VAS1978/35- Operating Instructions.

Release Tool Set -VAS1978/35
