Volkswagen Polo Service & Repair Manual: Infrared Dryer -VAS6879

Definition:

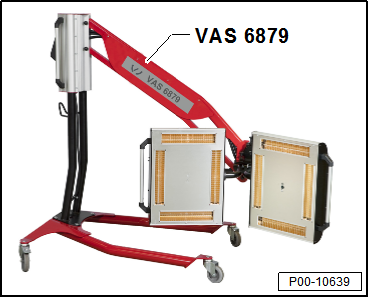

Infrared Dryer -VAS6879-
Product Description:
The infrared dryer is used to dry paste, filler, base paint, top coats and clear coats on vertical and horizontal surfaces.
Short-wave infrared dryer with two cassettes
12 pre-set programs with 3 free programs
Fully automatic drying process with pyrometer for temperature control, laser pointer and automatic distance measurement
Technical Data:
400 V, 3 PH+PE
12 KW
9 A
16 A slow-blow fuse
Delivery Contents:
Complete strand dryer with assembly instructions and operating instructions
  Note
Observe the manufacturer assembly instructions and operating instructions.
