Volkswagen Polo Service & Repair Manual: Coolant Fan Control Module -J293

Volkswagen Polo Service & Repair Manual / Refrrigerant R134a Servicing / Refrigerant Circuit General Information / Electrical Components Not on Refrigerant Circuit / Coolant Fan Control Module -J293

Note

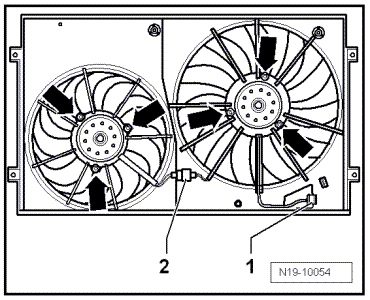

Available in different construction styles, some installed on coolant fan -arrows-.

This control module switches on and off the A/C clutch and therefore the A/C compressor. It switches the coolant fan and calculates the pressure in the refrigerant circuit on vehicles with a High Pressure Sensor -G65- or A/C Pressure/Temperature Sensor -G395-.
