Volkswagen Polo Service & Repair Manual: Brush Grinder Set -VAS6776

Volkswagen Polo Service & Repair Manual / General Paint Information / Workshop Equipment / Tools / Brush Grinder Set -VAS6776

Definition:

Brush Grinder Set -VAS6776-

Product Description:

The device is used to clean surfaces and remove corrosion in hard to reach areas. For example, it is suitable for joints, grooves, wheel housings, flange edges and door folds. It is operated pneumatically.

Design and Technology

A polyamide strap fitted with wires rotates in an adapter system.

The adapter system is powered by a pneumatic drive unit.

The impact force of the brushes is quadrupled via the accelerator bar.

Thoroughly removes corrosion and coatings.

Technical Data:

Weight: 1.1 kg

Air pressure connection thread: 1/4" PT (delivered G 1/4")

Hose diameter: 3/8" ID (9.5 mm)

Rotation speed: 0-2600 U/minute

Flow pressure: 7.5 bar / 110 psi

Air consumption: 14.2 CFM (400 l/minute)

Vibration: 1.45 m/sec² (EN ISO 8662-1; 8662-4)

Sound pressure level: 84 dB (DIN 45635-21; ISO 3744)

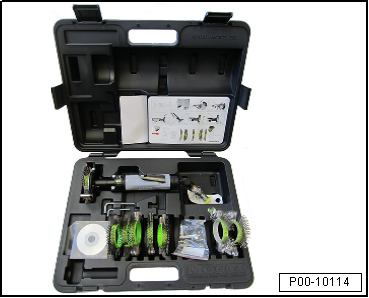

Delivery Contents:

1 Blaster drive unit

1 Pneumatic Brush Grinder Set - Holder - 11/28mm VAS6446/2

1 Brush Grinder Set - Swivel Joint VAS6446/9

1 Brush Grinder Set - Air Pressure Regulator VAS6446/8

2 Brush Grinder Belt -VAS6776/1-

2 Brush Grinder Belt -VAS6776/2-

2 Brush Grinder Belt -VAS6776/3-

2 Brush Grinder Belt -VAS6776/4-

2 Accelerator bars including arm for use with the stainless steel belts

1 Hard shell case

Replacement Parts:

Brush Grinder Belt -VAS6776/1- ASE 36308300000

Brush Grinder Belt -VAS6776/2- ASE 36308400000

Brush Grinder Belt -VAS6776/3- ASE 36308500000

Brush Grinder Belt -VAS6776/4- ASE 36308600000

Accelerator Rod -VAS6776/5- ASE 46308700000

Accelerator Rod -VAS6776/6- ASE 46308800000
