Volkswagen Polo Service & Repair Manual: Wiring Harness Repair Set -VAS1978

Volkswagen Polo Service & Repair Manual / Wiring / Wiring Harness and Connector Repairs / Wiring Harness Repair Set / Wiring Harness Repair Set -VAS1978

The Wiring Harness Repair Set -VAS1978- makes optimal repair quality possible in the realm of vehicle electronics. Using the tools, repairs affecting harness connectors and for breaks in wiring can be performed. For this purpose, complete repair wires with terminals already crimped on are used and can be connected to vehicle-specific wiring harness by the use of crimp connections. A pair of crimping pliers with three different crimp slots and a hot air gun for shrinking the crimp connections provide trouble-free electrical connection.

Note

Additional information:

Refer to Wiring Harness Repair Set -VAS1978- Operating Instructions.

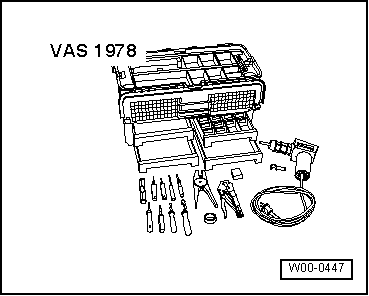

Wiring Harness Repair Set -VAS1978

Wiring Harness Repair Set

...

Upgrade Kit For VAS1978 -VAS1978/50

The Upgrade Kit For VAS1978 -VAS1978/50- is required in order to bring the “old”Wiring Harness Repair Set -VAS1978- up to the new standard of the Wiring Harness R ...
