  Apply the parking brake.
–  In vehicles with automatic transmission, move the selector lever to the “P” or “N” position.
–  In vehicles with manual transmissions, move the shift lever to the neutral position.

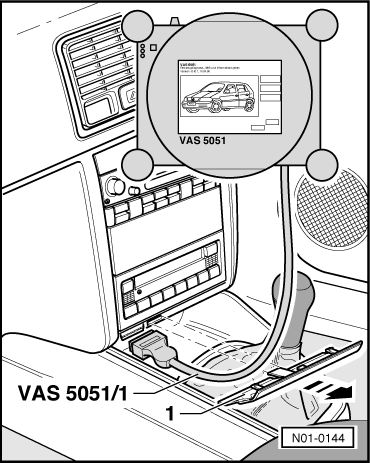

–  Remove trim -1- in direction of -arrow-.

–  With the ignition switched off, connect the Vehicle Diagnostic Tester with the Diagnostic Cable to the diagnostic connection -arrow- in the vehicle.
–  Turn on the ignition.
–  Turn off all electrical consumers.
  Note
The connection of all other and the following diagnostic operation system or vehicle diagnosis and service system occurs in the previously described sequence.
