Volkswagen Polo Service & Repair Manual: Paint Thickness Tester -VAS6197

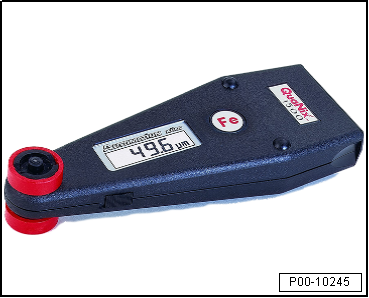

| Paint Thickness Tester -VAS6197- |
| Fully-electronic layer thickness measuring instrument with 2
independently operating sensors and LCD screens. Measurements on
different metallic base materials are possible. All non-magnetic
layers on steel or iron on the one part, all isolating layers on
non-ferrous metals (for example, aluminum or copper) on the
other part. Due to the Hall sensor technology used, calibration
is not required. |
| Measuring range: 0-5000 µm for both sensors |
