Note

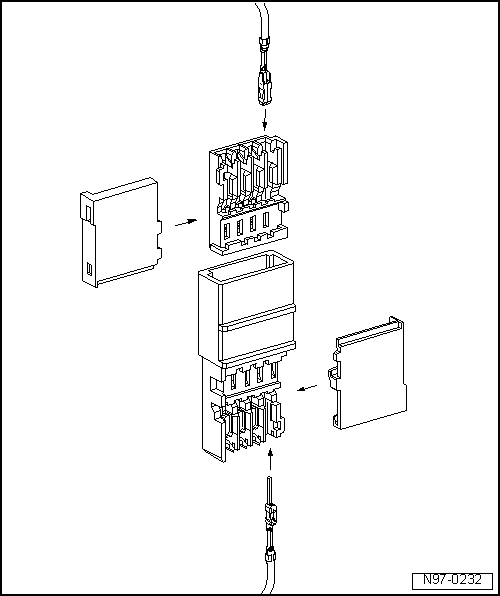

For technical reasons, the contact housing for the wire terminals can be supplied only with the contacts pushed in.

These contacts can be removed at every other contact housing in the event they are not required.

Repair wires which have already been equipped with corresponding contacts crimped on are available. Refer to Parts Catalog.

Contact Housings, Repairing Wire Terminals

Single Wire Seals, Installing

Note Single wire seals prevent the penetration of water and dirt into the contact housing. They are installed, for example, in the engine compart ...

Contact Housings, Releasing and Disassembling

...
