Volkswagen Polo Service & Repair Manual: Run-Flat System PAX, Examining Support Ring

As with the tire, the supporting ring is generally not replaced after driving with flat tire.

Replace the support ring if the following damages have occurred:

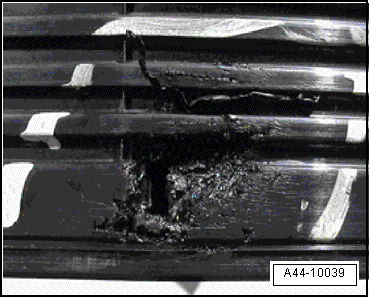

Blowouts or missing parts


Run-Flat System PAX, Examining Support Ring

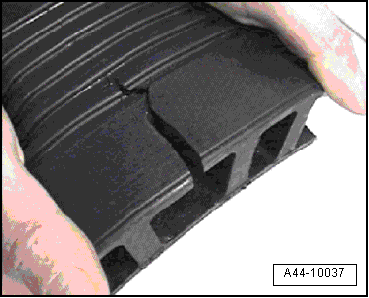

Cracks in partitions


Run-Flat System PAX, Examining Support Ring

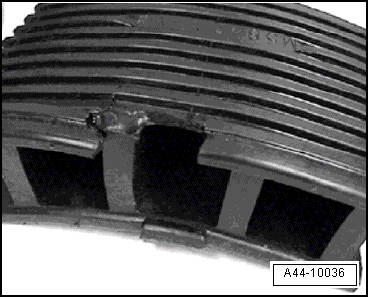

Stitch damage and holes


Run-Flat System PAX, Examining Support Ring

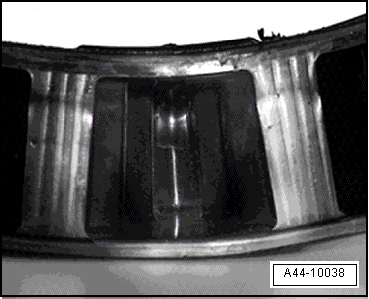

Bubbles and discoloration due to overheating
Repairs on Tires
  Note
Repairs on tires with emergency running characteristics (PAX) must not be performed with adhesive tape.
Tire repair sprays must not be used on tires with emergency running characteristics (PAX) because these products are not compatible with the gel in the tires.


Run-Flat System PAX, Examining Support Ring

Run-Flat System PAX, Dimensions and Designations on PAX Rims
Example: 235 x 500 A - 5 - 41 235 -  Designated width in millimeters x -  One-part ...
