Volkswagen Polo Owners Manual: Insulating glass windscreen

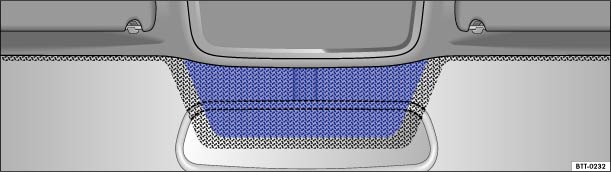

Fig. 71 Metal-coated windscreen for infrared reflection with communication window (blue area)
First read and observe the introductory information
and safety warnings
Insulating glass windscreens have a coating which reflects infrared radiation. There is a non-coated area above the interior mirror (communication window) which ensures that electronic accessories, for example remote controls, can function properly.
The uncoated area should not be covered either from the outside or the inside, nor should any stickers be applied to this area as this could cause a fault in the electronic components.
Sun visors
Fig. 70 Sun visor
First read and observe the introductory information
and safety warnings
Various positions for the driver and front passenger sun visors:
Folded down over the windscreen.
...
