The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points

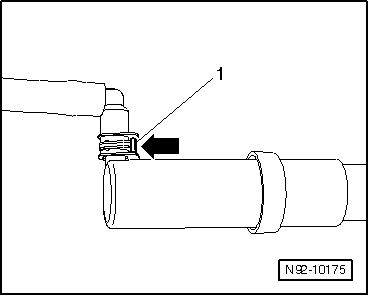

–	Disconnect by depressing clip -1--arrow- and then separating coupling from jet.

–	Reconnect by keeping clip -arrow- depressed while pushing coupling onto jet until it engages. Check securing clip for secure locking by attempting to pull it off without depressing clip.
