Volkswagen Polo Service & Repair Manual: Structuring Component

Definition:
Structuring Component, Fine -ALN 775 108-
Edition 04/2013
Product Description
The Structuring Component, Fine -ALN 775 108- is a component for the two-part HS top coat and changes it into a textured paint.
The top coat can be used for plastic finishes on vehicles.
Application Instructions
Base Surface
Suitable base surfaces:
Hardened, well-preserved and sanded old paint or factory paints
Plastic parts treated with primer or filler
  Note
For information about plastic parts, refer to "The VW/Audi Coating System for Plastic Parts" (Data Sheet 5.74).

Pre-treatment of base surfaces:
–  Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.


Structuring Component

–  Dry-sand with rotary sander and dust extraction (P 400 to 500 grit).


Structuring Component

–  Or wet-sand with P 800 grit sandpaper


Structuring Component

–  Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.
Processing


Structuring Component

Mixing ratio

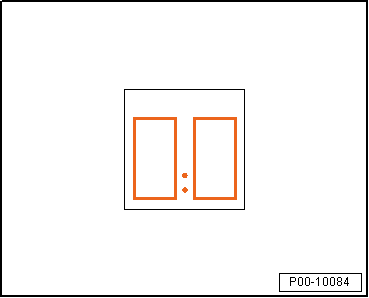

Mixing ratio 1:1 by volume with two-part HS top coat:
–  Afterwards combine this mixture 4:1 by volume with a suitable two-part VHS hardener.
See technical application information two-part VHS hardener. Refer to → Chapter „Two-Part VHS Hardener and Two-Part VHS Performance Hardener“.
Dilutable with:
Two-Part Thinner, Special -LVM 009 200 A2/A5-
Two-Part Thinner, Long -LVM 009 300 A2-


Structuring Component

Processing time/pot life:
–  Ready to spray in 90-100 minutes at +20 °C (68 °F)


Structuring Component

Application type “coat”


Structuring Component

–  Processing viscosity 4 mm for +20 °C (68 °F), German Industry Standardization 53211
–  Processing viscosity at +20 °C (68 °F) material temperature is the mixing viscosity for “Compliant” and “HVLP”.


Structuring Component

–  Adding 15 % thinner at +20 °C (68 °F) material temperature


Structuring Component

–  Set spray nozzle (see manufacturer's information): “Compliant” 1.3 to 1.4 mm.
–  Set spray nozzle (see manufacturer's information): “HVLP” 1.3 to 1.5 mm.
–  Set spray pressure (see manufacturer's information): “Compliant” to 2.0 to 2.5 bar.
–  Set atomizing pressure (see manufacturer's information): “HVLP” 0.7 bar.


Structuring Component

–  Two spray applications are required with drying time (5 to 10 minutes) to get a dry layer thickness of between 50 and 60 µm.
  Note
The addition of Elastic Additive -ALZ 011 001- is omitted.
Structuring Component, Fine -ALN 775 108- is only suitable for use on attachments (for example, bumpers, spoilers).
Various effects can be created using different spraying techniques and layer thicknesses.
Structuring Component, Fine -ALN 775 108- is thixotropically mixed, which means it becomes fluid when stirred.


Structuring Component

Drying
Air dry at +20 °C (68 °F) room temperature:
Dust dry after 30 to 50 minutes
Ready for assembly after 4 to 6 hours
Dry overnight


Structuring Component

Final drying time with forced drying is a minimum of 5 to 10 minutes.


Structuring Component

Forced dry at +60 °C (140 °F) object temperature for 30 to 40 minutes


Structuring Component

Final drying time for IR drying is 5 minutes.


Structuring Component

IR dry with a short-wave radiator for 10 to 15 minutes and with a medium-wave radiator for 15 to 20 minutes.


Structuring Component

Personal Protective Equipment:
Note the safety data sheets
Wear the personal protective equipment during application
Characteristics


Structuring Component

Delivery Viscosity Thixotropic
Flashpoint: above +23 °C (73.4 °F)
VOC value: 2004/42/IIB(e)(840)600 The EU limit for this product (product category IIB.e) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 600 g/L.


Storage
The guaranteed shelf life is 24 months from production date. Use no later than the date indicated on the label and store in original container at +20 °C (68 °F).
