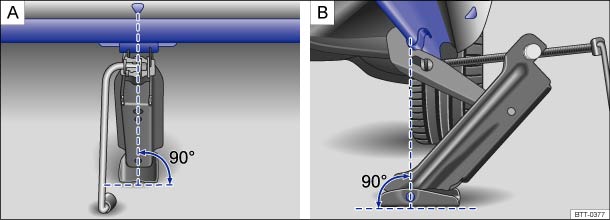

Fig. 168 Jacking points for the vehicle jack (mirrored on the right-hand side of the vehicle)

Fig. 169 Vehicle jack at the rear left-hand side of the vehicle
First read and observe the introductory
information and safety warnings
The jack may be applied only at the jacking points shown (markings on the body) . Always use the jacking point closest to the wheel you are working on .
Raise the vehicle using only the designated jacking points.
Wheel bolts
