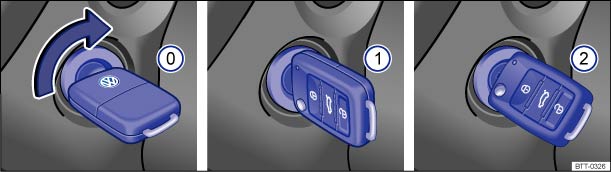

Fig. 107 Positions of the vehicle key in the ignition lock
First read and observe the introductory information
and safety warnings The steering lock can be activated when there is no vehicle key in the ignition lock.
Vehicle key positions
Ignition switched off. The vehicle key can
be removed.
Ignition switched on. The steering lock
can be released.
Engine is started. Release the vehicle key
as soon as the engine starts. Once released, the vehicle key moves back to position
①. The steering should be locked every time you leave vehicle to make theft of the vehicle more difficult .
Non-authorised vehicle key
If a non-authorised vehicle key has been inserted in the ignition lock it can be pulled out as follows:

WARNING
If the vehicle key is left in the ignition for a long period with the engine switched off, the vehicle battery could discharge.
In vehicles with an automatic gearbox, the vehicle key can only be removed from the ignition lock if the selector lever is in position P. If necessary, press the lock button in the selector lever and then release it.
