Volkswagen Polo Service & Repair Manual: Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

Volkswagen Polo Service & Repair Manual / Interior Lights, Switches / Cigarette Lighter -U1- / Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

  Note
On some vehicle equipment levels, socket illumination is via Light Emitting Diode (LED) instead of a bulb. These LEDs are integrated with the illumination housing and cannot be serviced or replaced separately.
Various versions of illumination housing with bulb exist. One version allows separate replacement of the illumination bulb, and another where the bulb cannot be serviced or replaced separately. In this case, the entire illumination housing must be replaced.
Removing
–  Remove the socket. Refer to

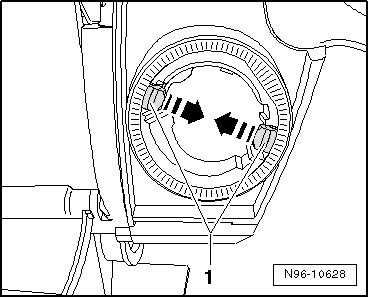

–  Depress retainers in direction of -arrows- and remove mounting sleeve with bulb holder.
–  Unclip bulb holder from mounting sleeve.


Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

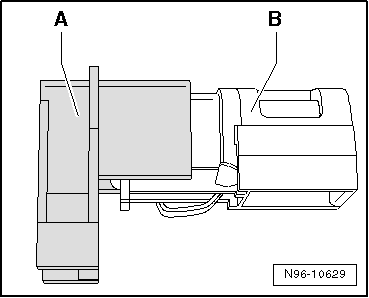

–  Separate bulb holder sections -A and B-.
–  Open bulb holder section -B-.


Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

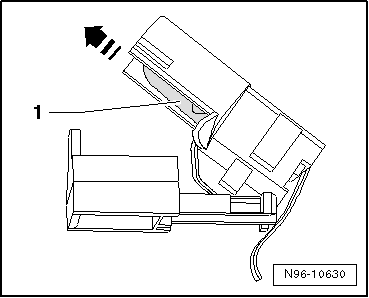

–  Remove bulb in direction of -arrow-.
Installing
Install in reverse order of removal.


Cigarette Lighter Illumination Bulb -L28-, Removing and Installing

Special Tools

Special tools and workshop equipment required

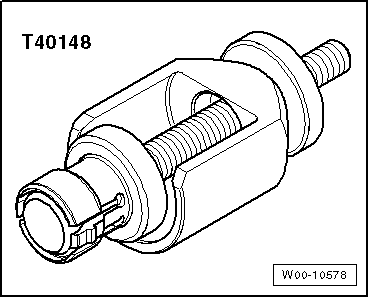

Release Tool for Cigarette Lighter -T40148-


Special Tools

Cigarette Lighter Socket, Removing and Installing
Special tools and workshop equipment required Cigarette Lighter Release Tool -T40148-   Note The removal an ...

Wiring
...
