Volkswagen Polo Service & Repair Manual: Wiring Harness Repair Set - Wire Strippers -VAS1978/3

Volkswagen Polo Service & Repair Manual / Wiring / Wiring Harness and Connector Repairs / Tool Descriptions / Wiring Harness Repair Set - Wire Strippers -VAS1978/3

The Wiring Harness Repair Set - Wire Strippers -VAS1978/3- is used for professional stripping and cutting of wires.
The Wiring Harness Repair Set - Wire Strippers -VAS1978/3- is a component of the Wiring Harness Repair Set -VAS1978B- and its previous versions.
Wire stripper has an adjustable stop in its pliers-jaws which can be set to the desired length of wire insulation to be removed.
Stripping

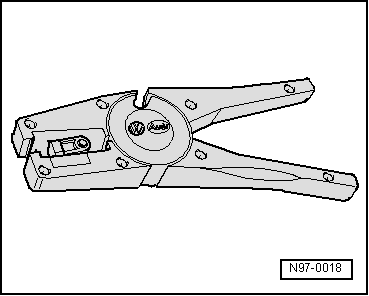

–  Set the slideable stop in pliers-jaws to the desired length dimension to be stripped.


Wiring Harness Repair Set - Wire Strippers -VAS1978/3

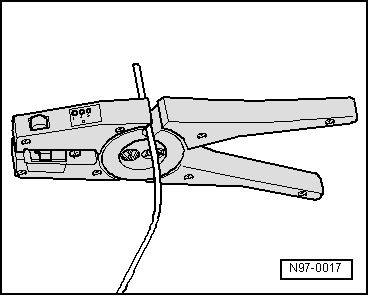

–  Insert wire end from front up to stop into jaws of pliers and squeeze the pliers completely.
–  Open pliers again and remove the stripped wire end.


Wiring Harness Repair Set - Wire Strippers -VAS1978/3

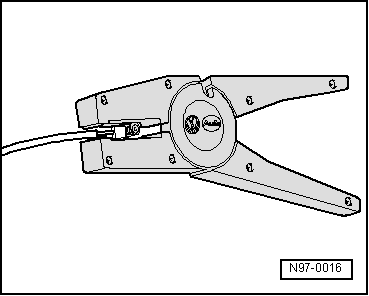

–  If necessary, cut wires using side-cutter function on the top of the wire stripper.


Wiring Harness Repair Set - Wire Strippers -VAS1978/3
