Volkswagen Polo Service & Repair Manual: Wheel Bolts, Anti-Theft Wheel Bolt

Volkswagen Polo Service & Repair Manual / Whels, Tires, Whel Alignment / Wheel Bolts / Wheel Bolts, Anti-Theft Wheel Bolt

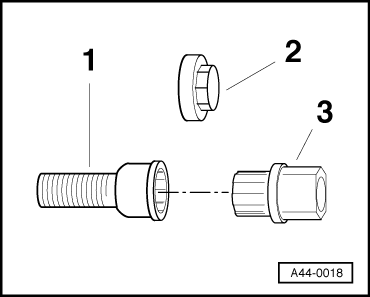

Anti-Theft Wheel Bolts

1 -	Anti-theft wheel bolts

2 -

Cap

3 -	Wheel bolt adapter

Wheel Bolts, Anti-Theft Wheel Bolt

Wheel Bolts, Master Sets for Anti-Theft Wheel Bolts

Special tools and workshop equipment required

Torque Wrench 1332 40-200Nm -VAG1332-

Wheel Bolt Master Socket Set -T10101-

Wheel Bolt Master Socket Set -T10101A-

Wheel Bolt Master Socket Set -T40004-

Wheel Bolt Master Socket Set -T40073-

Wheel Bolt Versions

Shank Designs There are two shank designs: rounded and conical. The rounded shank has a curv ...
