Volkswagen Polo Owners Manual: Vents

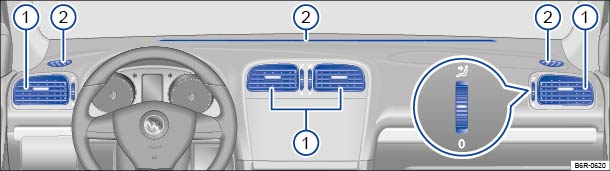

Fig. 128 In the dash panel: vents
First read and observe the introductory information
and safety warnings The vents should be left open to ensure that the vehicle interior is sufficiently heated, ventilated and cooled.
- Turn the relevant thumb wheel (magnified view) in the required direction
to open and close the vents. When the mark on the thumb wheel is in position
, the vent is closed.
- Adjust the direction of the airflow by moving the grille.
Additional vents can be found in the instrument panel , in the footwells and in the rear area of the vehicle interior.
NOTICE
Information on the air conditioning system
First read and observe the introductory information
and safety warnings The cooling system for the vehicle interior
only works when the engine is running and the blower is switched on.
The air ...
Air recirculation mode
First read and observe the introductory information
and safety warnings General notes
There are different types of air recirculation, depending on the level
of ...
