Volkswagen Polo Owners Manual / Vehicle exterior / Side view

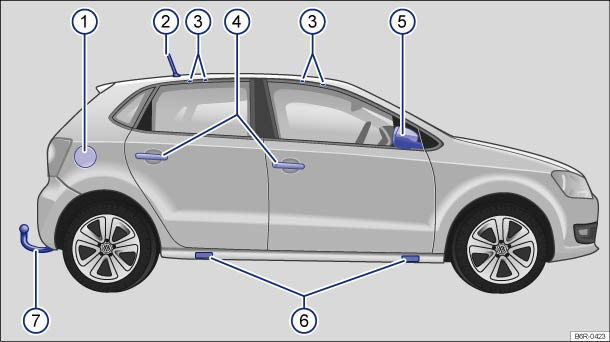

Fig. 1 Overview of the right side of the vehicle Positions ③, ④, ⑤ and ⑤ are also at the same position on the left side of the vehicle.

Key for :

Tank flap
Roof aerial
Attachment points for the mounts and roof carrier
Door release lever
Exterior mirrors
Jacking points
Towing bracket

Front view

Fig. 2 Overview of the front of the vehicle Key for : Rain/light sensor on the mirror base Windscreen Windscreen wiper Bonnet Bonnet release lever Headlights Headlight wa ...
