Volkswagen Polo Service & Repair Manual: Oxygen Sensor Unit Protective Pipes
 Note
| In addition to using the part number, the protective pipe
can also be used for identification. |

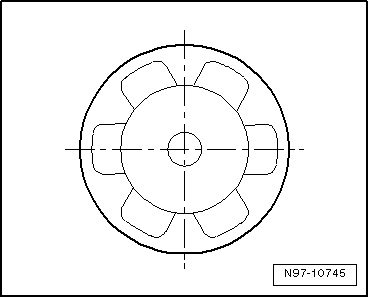

| Version D1, 6 openings, 3.5 mm each |
|
|
|
| Only used with the 4-pin oxygen sensor |

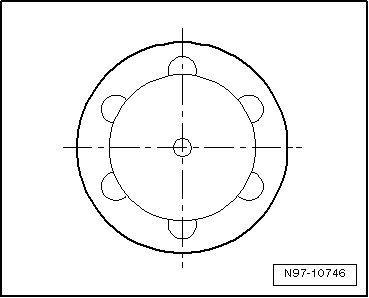

| Version D2, 6 openings, 2 mm each |
|
|
|
| Used with 4-pin and 6-pin universal oxygen sensors. |

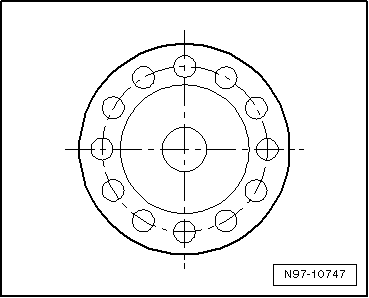

| Version D4, 12 openings, 1.4 mm each |
|
|
|
| Used with 4-pin and 6-pin universal oxygen sensors. |
|
|
|
Note
Use the faulty sensor as a guide for installing all of the
accompanying attachments, cable ties or marking bands.
