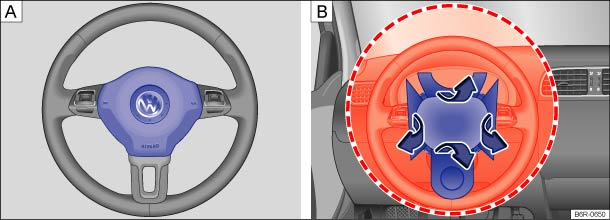

Fig. 56 Location and deployment zone of the driver front airbag

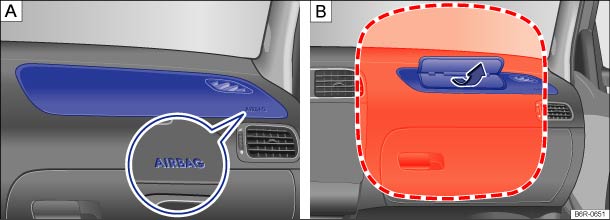

Fig. 57 Location and deployment zone of the front passenger front airbag
First read and observe the introductory information and safety warningsIn conjunction with the seat belts, the front airbag system gives the front occupants additional protection for the head and chest in the event of a severe frontal collision. Always keep as far away from the front airbag as possible . This allows the front airbags to inflate fully when triggered, thus providing maximum protection.
The front airbag for the driver is located in the steering wheel A and the front airbag for the front passenger is located in the dash panel A. The airbag locations are identified by the text AIRBAG.
The areas inside the red lines B and B are covered by the front airbags when triggered (deployment zone). For this reason, you must never leave or attach any objects in these areas . The factory-fitted accessories, such as the base plate for the mobile telephone holder, will not be struck when the driver and front passenger front airbags are triggered.
The airbag covers fold out of the steering wheel B or dash panel B when the driver and front passenger airbags deploy.
DANGER
Once triggered, the airbag inflates at high speed.WARNING
The front airbags are deployed in front of the steering wheel and dash panel .Changing bulbs in the front headlights (halogen H4)
Fig. 178 Rear view of the
right-hand H4 headlight with plastic covers: ① dipped beam and main beam, ② turn
signal and ③ side light
Fig. 179 Rear view of the
right-hand H4 headlight with rubber cover: ① dipped beam and main beam, ② turn
signal and ③ side light
First read and o ...
Fitting the front towing eye
Fig. 193 In bumper at front right:
depiction of variants for screwing in towing eye
First read and observe the introductory
information and safety warnings
The towing eye is screwed into a threaded hole behind a cover on the right of
the front bumper .
The towing eye must always be kept i ...
