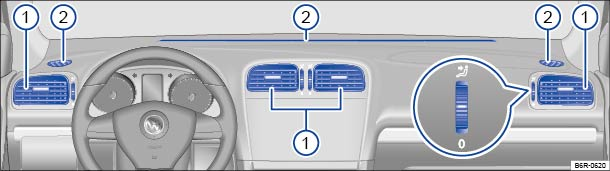

Fig. 128 In the dash panel: vents
The vents should be left open to ensure that the vehicle interior is sufficiently heated, ventilated and cooled.
Additional vents can be found in the instrument panel , in the footwells and in the rear area of the vehicle interior.
NOTICE
Introduction
This chapter contains information on the following subjects:
→ Stowing items of luggage
→ Driving with an open tailgate
→ Driving a loaded vehicle
→ Vehicle-specific weight ratings
Heavy objects must always be stowed securely in the luggage compartment and y ...
Refrigerant Circuit with Restrictor and Reservoir
1 -
A/C Compressor
2 -
Condenser
3 -
Restrictor
4 -
Evaporator
5 -
Reservoir with dryer bag
...
Compressor Types, Checking Pressures
Note
Check cooling performance. The A/C system is functioning
correctly when the air flowing from the instrument panel vents
has a temperature of 70C or lower.
Setting on Climatronic “LO”.
...
