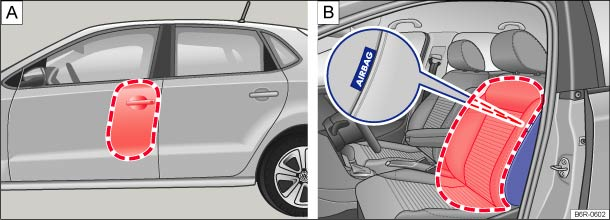

Fig. 59 On left-hand side of vehicle: deployment zone of the side airbag (variant A). On the side of the front seat: location and deployment range of the side airbag (variant B)
The side airbags are located in the outer seat backrest cushions of the driver seat and front passenger seat B. The locations of the airbags can be identified by the presence of stickers containing the word AIRBAG. The areas marked in red in show the side airbag deployment zones.
During a side collision, the side airbags will be deployed on the side of the vehicle which is impacted, thus reducing the risk of injury to the areas of the vehicle occupants' bodies facing the impact.
WARNING
WARNING
Removing and fitting head restraints
First read and observe the introductory information
and safety warnings
Every seat is fitted with a head restraint. The centre rear head restraint is
designed solely for use with the centre rear seat. This head restraint should therefore
not be installed in any of the other positions.
Remov ...
Adapter for Assembling Flushing Circuit
The following table lists the different adapters necessary
to connect the service station to the refrigerant circuit, to
flush and to bypass the removed receiver/dryer or reservoir and
expansion valve (depending on the vehicle).
Us ...
Frontal collisions and the laws of physics
Fig. 45 Unbelted occupants in a vehicle
heading for a brick wall
Fig. 46 Unbelted occupants in a vehicle
striking a brick wall
First read and observe the introductory information
and safety warnings
The physical principles involved in a frontal collision are relatively simple.
As soon a ...
