Volkswagen Polo Service & Repair Manual: Battery Charger -VAS5903- Maintenance Charging

Volkswagen Polo Service & Repair Manual / Battery, Starter, Generator, Cruise Control / Battery, Charging / Battery Charger -VAS5903 / Battery Charger -VAS5903- Maintenance Charging

Note

If the battery is discharged by an electrical consumer during maintenance charging, the Battery Charger -VAS5903- automatically supplies the appropriate charge.

Maintenance charging can be performed without time restrictions.

The battery can be used constantly.

Observe the maintenance notes of the battery manufacturer.

WARNING

Risk of injury. Follow all Warnings and Safety Precautions. Refer to → Chapter „Warnings and Safety Precautions“.

WARNING

Batteries that have a light yellow visual indicator do not have to be tested or charged. Jump starting must not be used!

There is a risk of explosion during testing, charging or jump starting.

These batteries must be replaced.

If the battery is fully charged, the Battery Charger -VAS5903- starts maintenance charging.

–	Proceed as when charging the battery. Refer to → Chapter „Battery, Charging with Battery Charger -VAS5903-“.

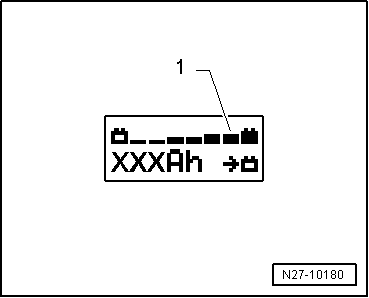

With a charge status of 100%, all bars are indicated on the display.
