Volkswagen Polo Service & Repair Manual: A/C Evaporator Temperature Switch -E33

Volkswagen Polo Service & Repair Manual / Refrrigerant R134a Servicing / Refrigerant Circuit General Information / Electrical Components Not on Refrigerant Circuit / A/C Evaporator Temperature Switch -E33

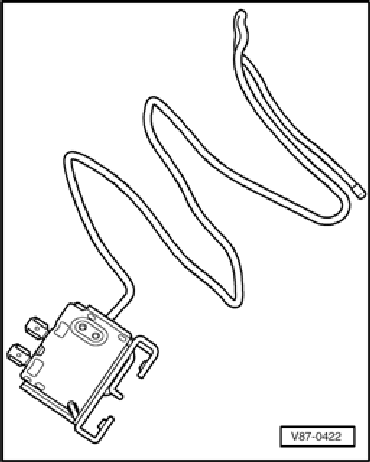

Function:

The A/C Evaporator Temperature Switch -E33- determines the temperature between the evaporator cooling fans. It prevents the possibility of ice building up between the evaporator cooling fans because the current entry to the condenser magnetic clutch is interrupted when the temperature on the cooling fins lowers to the freezing point for humidity.

The insertion depth of the feeler tube is marked or indicated in the repair manual. Refer to → Rep. Gr.87.

Note

Installed on VW vehicles with the A/C compressor drive above the ribbed belt
